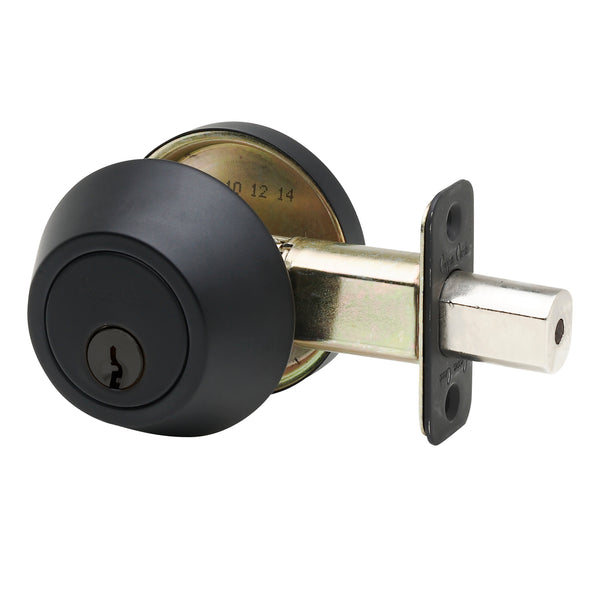

Single Cylinder Deadbolt in Black DB2410BC

Copper Creek

Single Cylinder Deadbolt in Black DB2410BC

Available Functions: 1 Sided, Single Cylinder, Double Cylinder
Single Cylinder Deadbolt featuring A Decorative Turn-piece with ANSI Grade-3 Security rating
Solid brass cylinder protected by hardened steel cylinder guard
Full one inch throw bolt with hardened steel roll pin
Functional and decoractive Turnpiece, fully ADA compliant
Limited lifetime warranty on mechanical components and 5 year on the finish

Available Functions: 1 Sided, Single Cylinder, Double Cylinder
Single Cylinder Deadbolt featuring A Decorative Turn-piece with ANSI Grade-3 Security rating
Solid brass cylinder protected by hardened steel cylinder guard
Full one inch throw bolt with hardened steel roll pin
Functional and decoractive Turnpiece, fully ADA compliant
Limited lifetime warranty on mechanical components and 5 year on the finish

Description

Great security begins with both a great design and great materials, and this Rustic Modern styled deadbolt provides the ideal solution when building your new home or remodeling. Featuring all metal construction, solid brass cylinders, and a premium Black finish, the DB2410BC from Copper Creek offers a perfect blend between, durability, reliability and attractive style. Through intelligent sourcing and manufacturing, this Copper Creek deadbolt is available at a fraction of the cost of other popular brands. Make this deadbolt part of your home and see why Copper Creek is truly "Designed For Life"

Deadbolt Specifications & Options

Specification	Details
ANSI / BHMA	ANSI 156.2 Grade-3, 200,000 cycles.
Cylinder	Solid Brass KW1 5-pin std. "C" optional.
Keying	As specified: Available Master keyed, Builder keyed, KD, KA.
Latch	Adjustable backset, 1" round corner narrow faceplate std. Square corner or drive-in adjustable optional.
Strike	PT-DS16 and PT-DS26: Round corner strikes std. Others available.
Door Prep	Edge bore 1", latch mortise 1" x 2-1/4", cross bore 2-1/8", backset standard 2-3/8", optional 2-3/4".
Door Thickness	Min 1-3/8", Max 1-3/4".
Handing	Non-handed.
UL Labeled	Available 90-minute UL Labeled.
Warranty	Lifetime mechanical, 5 year finish.

Available Finishes

SKU #	SS	TB	AB	AN	BC	PB	PS	Case Qty (Units)
DB2405	X							12
DB2410	X	X	X	X	X	X	X	12
DB2420	X	X	X	X	X	X	X	12

Function & Operation

Function	Operation
2405 – 1/2 Bore One Sided Deadbolt	Inside turn-piece throws or retracts 1" deadbolt latch.
2410 – Single Cylinder Deadbolt	Inside turn-piece and exterior key throws or retracts the 1" deadbolt latch.
2420 – Double Cylinder Deadbolt	Outside and inside keyed cylinders throw or retract 1" deadbolt latch.
